Product Specifications

Part Number:33231
UPC Number:765809332317

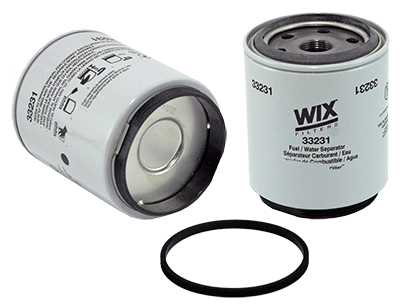

Style:Spin On Fuel Water Separator w/ Open End Bottom
Service:Fuel
Type:
Media:Enhanced Cellulose
Height:5.145 (131)*
Outer Diameter Top:4.282 (109)*
Outer Diameter Bottom:Closed:
Thread Size:1-14
Burst Pressure-PSI:290
Max Flow Rate:12-15 GPM
Nominal Micron Rating:14
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 3.6 (91)*3.21 (82)*0.34 (9)*
Packed 4.226 (107)*3.926 (100)*0.225 (6)*

Principle Application:

Principle Application:Ford Medium Duty Trks w/6.6L, 7.8L Engines, Atlas-Copco, DAF, John Deere, New Holland, Volvo Trks, Other - if bowl required, use WF10136 (order separately) - bowl threads are 3 3/4-10 - To eliminate the bowl, can use 33411, complete spin on w/drain - if a spin-on w/ drain + sensor port required, use 33184 or 33611 (for 30 micron version, use WF10012 or WF10253 )
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 33231

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
