Product Specifications

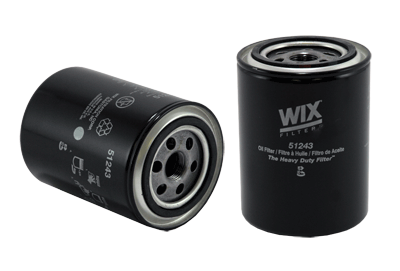

Part Number:51243
UPC Number:765809512436
Style:Spin-On Lube Filter
Service:Lube
Type:Full Flow
Media:Enhanced Cellulose
Height:5.209 (132)*
Outer Diameter Top:3.663 (93)*
Outer Diameter Bottom:Closed:
Thread Size:13/16-16
By-Pass Valve Setting-PSI:16
Burst Pressure-PSI:260
Max Flow Rate:9-11 GPM
Nominal Micron Rating:25
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
15614 Attached 2.834 (72)*2.462 (63)*0.200 (5)*

Principle Application:

Principle Application:Various John Deere Engines + Equipment
All Applications
