Product Specifications

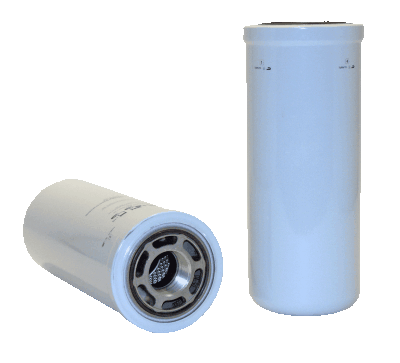

Part Number:51721
UPC Number:765809517219
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Synthetic
Height:11.63 (295)*
Outer Diameter Top:4.77 (121)*
Outer Diameter Bottom:Closed:
Thread Size:1 3/4-12
Beta Ratio:2/20=20/33
Burst Pressure-PSI:800
Max Flow Rate:30 GPM
Nominal Micron Rating:20
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 3.340 (85)*3.110 (79)*0.140 (4)*

Principle Application:

Principle Application:Ingersoll Rand 1100, 1300, 1400 Compressors
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 51721

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
