Product Specifications

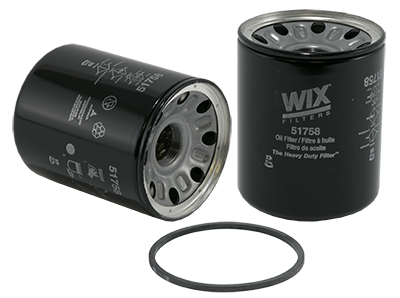

Part Number:51758
UPC Number:765809517585
Style:Spin-On Lube Filter
Service:Lube/Hydraulic
Type:Full Flow
Media:Enhanced Cellulose
Height:6.872 (175)*
Outer Diameter Top:5.007 (127)*
Outer Diameter Bottom:Closed:
Thread Size:1 1/2-16
By-Pass Valve Setting-PSI:None
Beta Ratio:2/20=6/20
Burst Pressure-PSI:275
Max Flow Rate:28-30 GPM
Nominal Micron Rating:25
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
15758 Packed 5.140 (131)*4.750 (121)*0.185 (5)*
15658 8 5.055 (128)*4.48 (114)*0.359 (9)*
15661 8 5.03 (128)*4.44 (113)*0.19 (5)*
8 Housing Gasket not packaged with filter-order separately

Principle Application:

Principle Application:Ag-Chem, Case, John Deere, Other Equipment (25 Micron) - if L-shaped gasket required, order 15658 - order separately - if wide groove gasket required, order 15661 - order separately
All Applications
