Product Specifications

Part Number:33380
UPC Number:765809333802

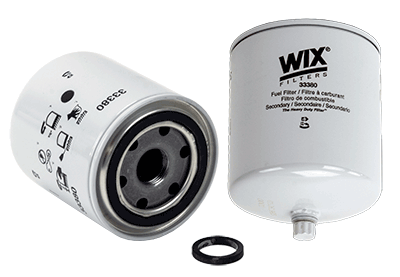

Style:Spin-On Fuel Filter
Service:Fuel
Type:
Media:Enhanced Cellulose
Height:4.978 (126)*
Outer Diameter Top:3.694 (94)*
Outer Diameter Bottom:Closed:
Thread Size:15/16-16
Burst Pressure-PSI:300
Nominal Micron Rating:6
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.834 (72)*2.462 (63)*0.200 (5)*
15625 1.187 (30)*0.915 (23)*0.16 (4)*

Principle Application:

Principle Application:Case - Secondary (6 Micron)
All Applications
