Product Specifications

Part Number:33405
UPC Number:765809334052

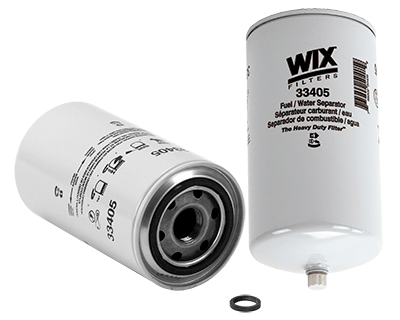

Style:Spin-On Fuel/Water Separator Filter
Service:Fuel
Type:
Media:Enhanced Cellulose
Height:7.219 (183)*
Outer Diameter Top:3.698 (94)*
Outer Diameter Bottom:Closed:
Thread Size:1-14
Burst Pressure-PSI:320
Max Flow Rate:12 GPM
Nominal Micron Rating:14
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.729 (69)*2.415 (61)*0.255 (6)*
15625 Packed 1.187 (30)*0.915 (23)*0.16 (4)*

Principle Application:

Principle Application:Various Cummins, Hitachi, Kawasaki - has standard drain - if self-venting drain required, use WF10064
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 33405

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
