Product Specifications

Part Number:51859
UPC Number:765809518599

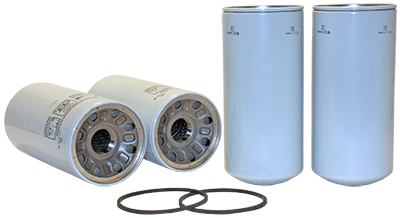

Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Enhanced Cellulose
Height:11.257 (286)*
Outer Diameter Top:5.007 (127)*
Outer Diameter Bottom:Closed:
Thread Size:1 1/2-16
By-Pass Valve Setting-PSI:18-22
Beta Ratio:2/20=2/17
Burst Pressure-PSI:345
Max Flow Rate:28-30 GPM
Nominal Micron Rating:5
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
15387 Packed 4.976 (126)*4.656 (118)*0.187 (5)*
15859 8 4.762 (121)*4.484 (114)*0.139 (4)*
8 Housing Gasket not packaged with filter-order separately

Principle Application:

Principle Application:Case Tractors, Toro - (2 elements per box)
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 51859

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
