Product Specifications

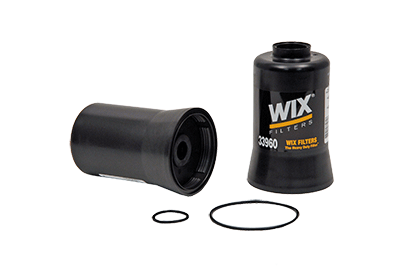

Part Number:33960
UPC Number:765809339606
Style:Spin On Fuel Water Separator w/ Open End Bottom
Service:Fuel
Type:
Media:Enhanced Cellulose
Height:6.3 (160)*
Outer Diameter Top:3.96 (101)*
Outer Diameter Bottom:3.47 (88)*
Thread Size:3 3/8-8
Nominal Micron Rating:7
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed 1.63 (41)*1.3 (33)*0.165 (4)*
Packed 3.755 (95)*3.475 (88)*0.14 (4)*

Principle Application:

Principle Application:Chevy-GMC Trucks w/ 6.6L Duramax Diesel (01-11) (standard version of 33960XE)
All Applications
