Product Specifications

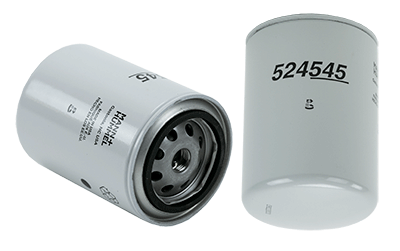

Part Number:24545
UPC Number:765809245457
Style:Coolant Spin-On Filter
Service:Coolant
Type:By-Pass
Media:Cellulose
Height:5.424 (138)*
Outer Diameter Top:3.69 (94)*
Outer Diameter Bottom:Closed:
Thread Size:M16x1.5
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.8 (71)*2.426 (62)*0.207 (5)*

Principle Application:

Principle Application:Mack Trucks and Buses (Additive Free Filter) - for chemical additive version, use # WS10119
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 24545

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
