Product Specifications

Part Number:D85B05FV
UPC Number:765809739802
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:6.142 (156)*
Outer Diameter:3.071 (78)*
Inside Diameter Top:1.583 (40)*
Inside Diameter Bottom:Closed:
Thread Size:
Beta Ratio:200/5.4
Nominal Micron Rating:5
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:24.53
Filter Area:262
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: D85B05FV

Error: Embedded data could not be displayed.

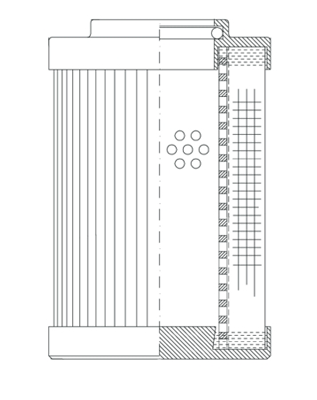

Representative Image
