Product Specifications

Part Number:R16E25C
UPC Number:765809357969

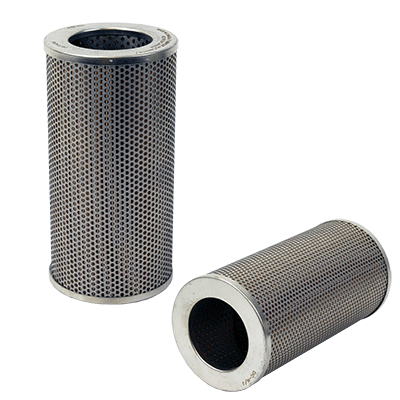

Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:8.66 (220)*
Outer Diameter:4.41 (112)*
Inside Diameter:2.76 (70)*
Thread Size:
Beta Ratio:2/25
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:36.8
Filter Area:920
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
