Product Specifications

Part Number:R74C03GV
UPC Number:765809770317
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:12.874 (327)*
Outer Diameter:3.795 (96)*
Inside Diameter Top:2.205 (56)*
Inside Diameter Bottom:Closed:
Thread Size:
Beta Ratio:200/3
Nominal Micron Rating:3
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Capacity:71.57
Filter Area:967
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R74C03GV

Error: Embedded data could not be displayed.

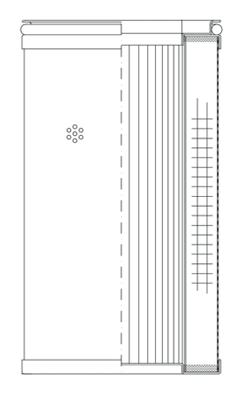

Representative Image
