Product Specifications

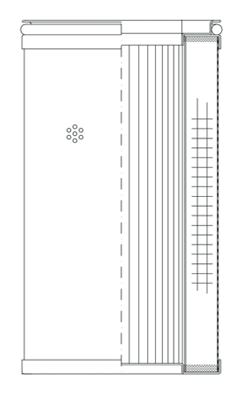

Part Number:R75C06GV
UPC Number:765809829206
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:16.811 (427)*
Outer Diameter:3.795 (96)*
Inside Diameter Top:2.205 (56)*
Inside Diameter Bottom:Closed:
Thread Size:
Beta Ratio:200/5.4
Nominal Micron Rating:5
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Capacity:118.95
Filter Area:1269
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
