Product Specifications

Part Number:R25D100TP
UPC Number:765809818354
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Stainless Mesh
Height:21.457 (545)*
Outer Diameter:7.953 (202)*
Inside Diameter Top:6.181 (157)*
Inside Diameter Bottom:0.559 (14)*
Thread Size:
Nominal Micron Rating:100
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Filter Area:1308
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R25D100TP

Error: Embedded data could not be displayed.

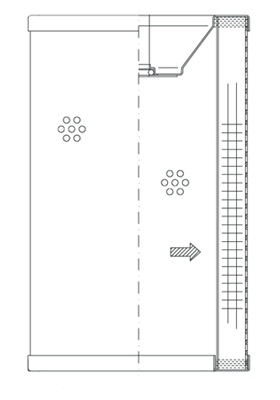

Representative Image
