Product Specifications

Part Number:R38D20DV5
UPC Number:765809756922
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:6.713 (171)*
Outer Diameter:1.752 (44)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:0.874 (22)*
Thread Size:
Beta Ratio:2/25
Nominal Micron Rating:20
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:6.29
Filter Area:157
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R38D20DV5

Error: Embedded data could not be displayed.

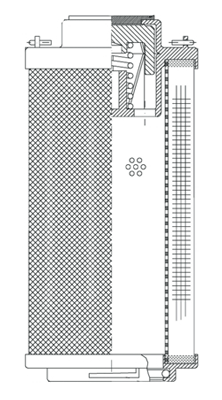

Representative Image
