Product Specifications

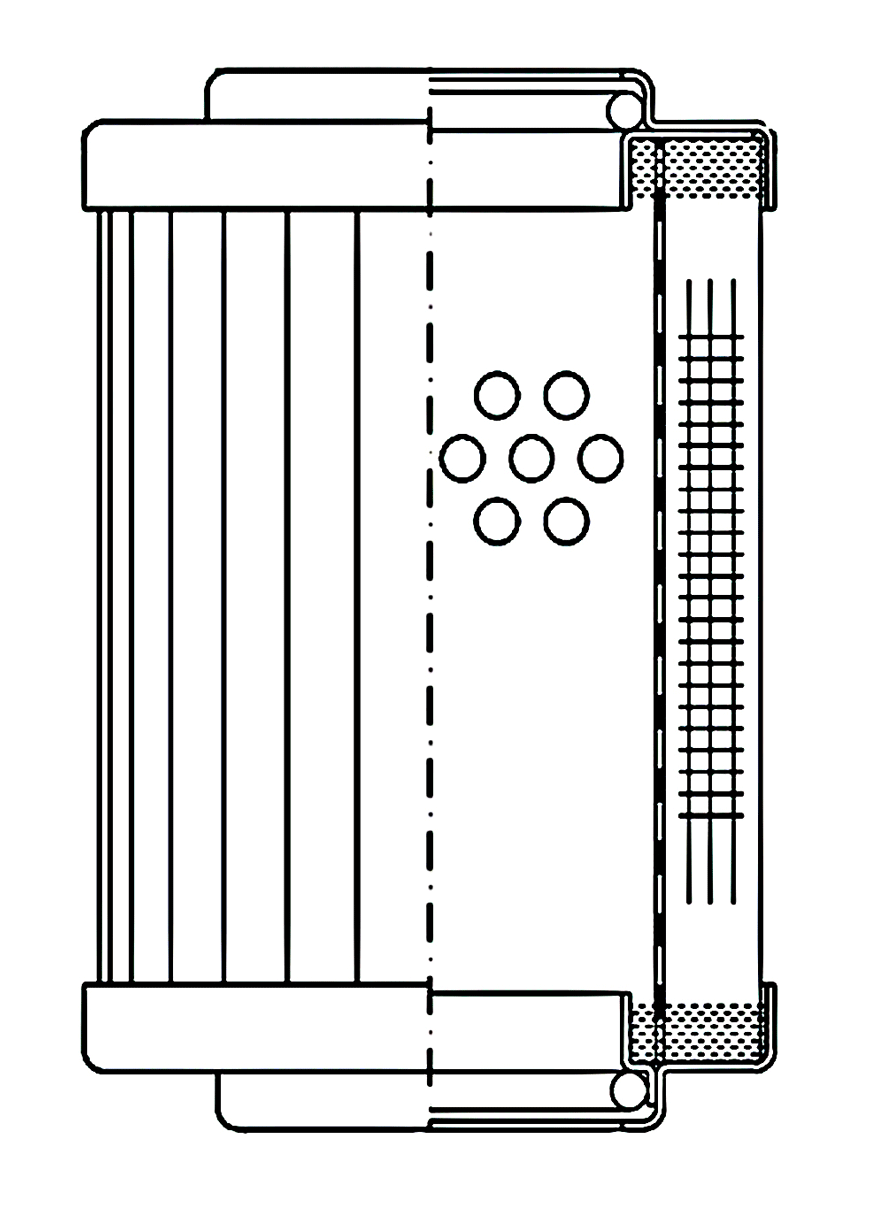

Part Number:R08A10EV
UPC Number:765809350335
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:6.22 (158)*
Outer Diameter:4.33 (110)*
Inside Diameter:2.17 (55)*
Thread Size:
Beta Ratio:200/9.9
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:55.12
Filter Area:563
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
