Product Specifications

Part Number:W01AG196
UPC Number:765809780262
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:14.65 (372)*
Outer Diameter:4.59 (117)*
Inside Diameter:2.22 (56)*
Beta Ratio:200/20.7
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Capacity:93.66
Filter Area:1043
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W01AG196

Error: Embedded data could not be displayed.

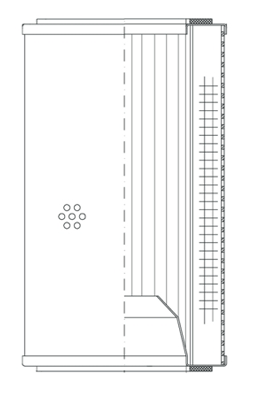

Representative Image
