Product Specifications

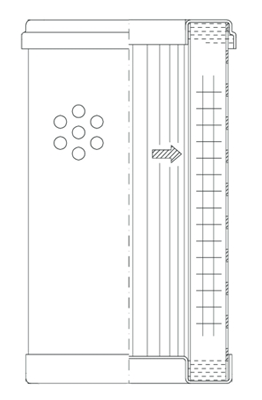

Part Number:W01AG398
UPC Number:765809359222
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:7.87 (200)*
Outer Diameter Top:2.05 (52)*
Outer Diameter Bottom:1.97 (50)*
Inside Diameter Top:0.91 (23)*
Inside Diameter Bottom:Closed:
Beta Ratio:200/9.9
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Capacity:19.29
Filter Area:197
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
