Product Specifications

Part Number:W01AG436
UPC Number:765809703247

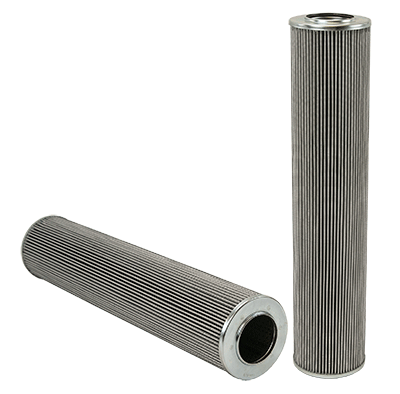

Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:18.5 (470)*
Outer Diameter:3.9 (99)*
Inside Diameter:2.26 (57)*
Beta Ratio:200/3
Nominal Micron Rating:3
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:107.82
Filter Area:1457
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
