Product Specifications

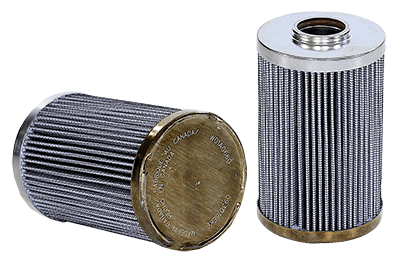

Part Number:W01AG660
UPC Number:765809375048
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:4.65 (118)*
Outer Diameter:2.87 (73)*
Inside Diameter Top:1.07 (27)*
Inside Diameter Bottom:Closed:
Beta Ratio:200/9.9
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:27.8
Filter Area:284
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
