Product Specifications

Part Number:W02AP379
UPC Number:765809782327
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:8.11 (206)*
Outer Diameter:7.09 (180)*
Inside Diameter Top:4.13 (105)*
Inside Diameter Bottom:Closed:
Beta Ratio:2/25
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:101.84
Filter Area:2263
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W02AP379

Error: Embedded data could not be displayed.

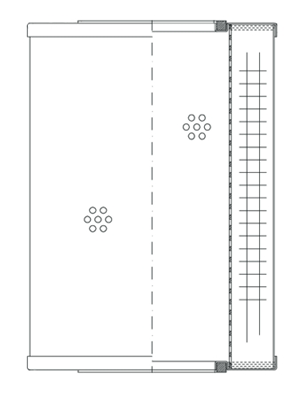

Representative Image
