Product Specifications

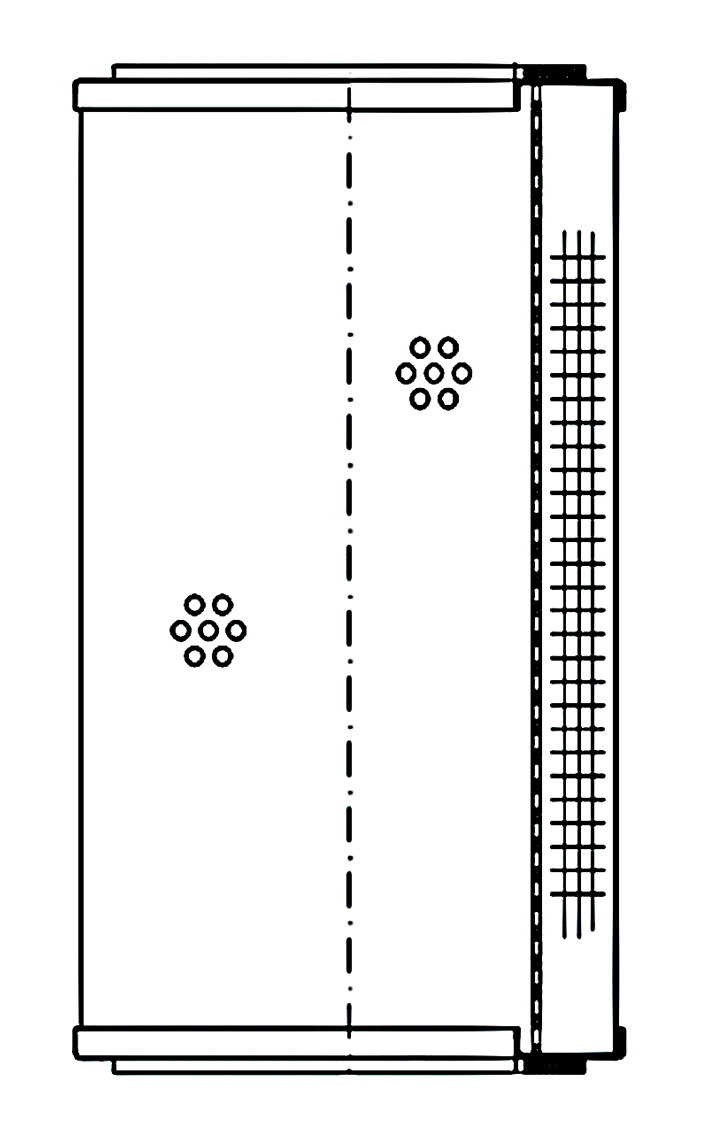

Part Number:W02AP455
UPC Number:765809703483
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:18.31 (465)*
Outer Diameter:4.96 (126)*
Inside Diameter:3.31 (84)*
Beta Ratio:2/25
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:129.29
Filter Area:2873
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
