Product Specifications

Part Number:W02AP643
UPC Number:765809783010
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:13.15 (334)*
Outer Diameter:7.09 (180)*
Inside Diameter:4.53 (115)*
Beta Ratio:2/25
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Capacity:172.71
Filter Area:3838
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W02AP643

Error: Embedded data could not be displayed.

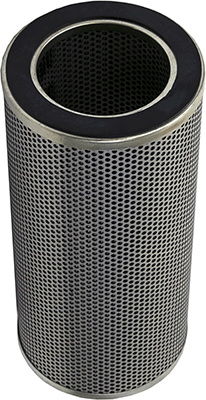

Representative Image
