Product Specifications

Part Number:W03AT709
UPC Number:765809821620
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Stainless Mesh
Height:8.03 (204)*
Outer Diameter:2.17 (55)*
Inside Diameter:1.1 (28)*
Nominal Micron Rating:60
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
Filter Area:128
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W03AT709

Error: Embedded data could not be displayed.

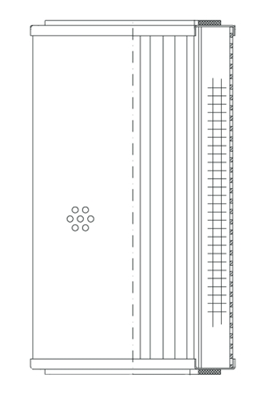

Representative Image
