Product Specifications

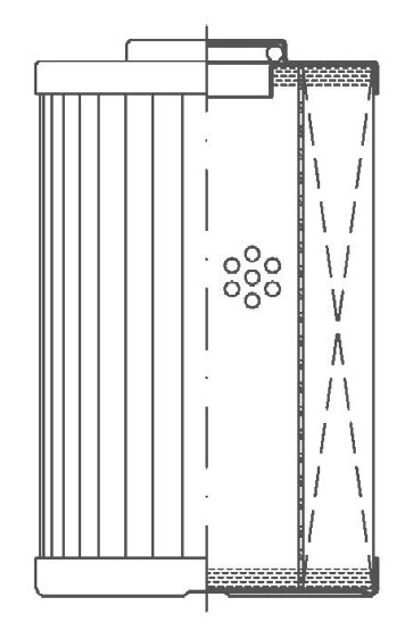

Part Number:R91E10E
UPC Number:765809996571
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:18.4 (467)*
Outer Diameter:3.9 (99)*
Inside Diameter Top:2.3 (58)*
Inside Diameter Bottom:Closed:
Beta Ratio:200/8.0
Nominal Micron Rating:10
Operating Temp. (min):-20
Operating Temp. (max):-225
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
