Product Specifications

Part Number:A02A10C9
UPC Number:765809363090

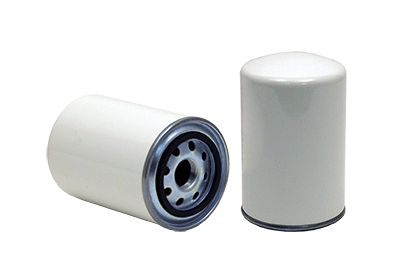

Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:5.827 (148)*
Outer Diameter Top:3.78 (96)*
Outer Diameter Bottom:3.779 (96)*
Thread Size:1-12
Beta Ratio:2/10
Burst Pressure-PSI:288
Max Flow Rate:27 GPM
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.82 (72)*2.535 (64)*0.211 (5)*

Principle Application:

Principle Application:Replacement Filter for Off-line Filtration Unit - this is the downstream filter - 10 micron paper media
