Product Specifications

Part Number:A09A10C
UPC Number:765809363199

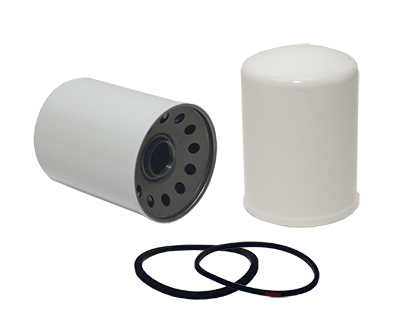

Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:10.354 (263)*
Outer Diameter:5.039 (128)*
Thread Size:1 1/2-16
Beta Ratio:2/10
Burst Pressure-PSI:288
Max Flow Rate:79 GPM
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed (2) 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Replacement Filter for Off-line Filtration Unit
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: A09A10C

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
