Product Specifications

Part Number:D02C10CV
UPC Number:765809356665
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:5.984 (152)*
Outer Diameter:2.087 (53)*
Inside Diameter Top:0.965 (25)*
Inside Diameter Bottom:Closed:
Beta Ratio:2/10
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: D02C10CV

Error: Embedded data could not be displayed.

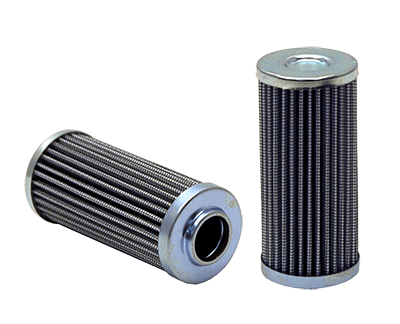

Representative Image
