Product Specifications

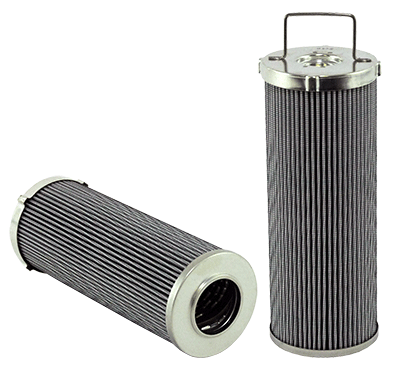

Part Number:R41F10G
UPC Number:765809363359
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:9.4 (239)*
Outer Diameter Top:3.3 (84)*
Outer Diameter Bottom:3.1 (79)*
Inside Diameter Top:1.6 (41)*
Inside Diameter Bottom:Closed:
Beta Ratio:200/8
Nominal Micron Rating:10
Operating Temp. (min):-20
Operating Temp. (max):225
Flow Direction:Outside-In
Capacity:55
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
