Product Specifications

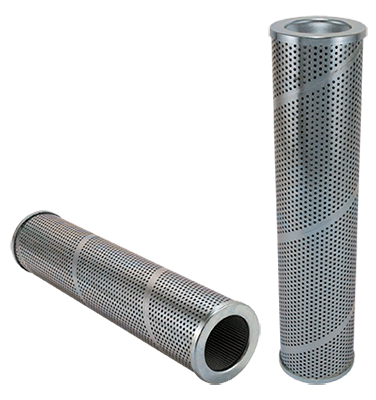

Part Number:R47F10G
UPC Number:765809368521
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:18.3 (465)*
Outer Diameter:4.2 (107)*
Inside Diameter Top:0.4 (10)*
Inside Diameter Bottom:2.8 (71)*
Beta Ratio:200/9.9
Nominal Micron Rating:10
Operating Temp. (min):-20
Operating Temp. (max):225
Flow Direction:Inside-Out
Capacity:152
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R47F10G

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
