Product Specifications

Part Number:A19A10G
UPC Number:765809360396
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:9.51 (242)*
Outer Diameter:3.74 (95)*
Thread Size:1 3/8-12
Beta Ratio:200/9.9
Burst Pressure-PSI:504
Max Flow Rate:79 GPM
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.699 (69)*2.490 (63)*0.134 (3)*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: A19A10G

Error: Embedded data could not be displayed.

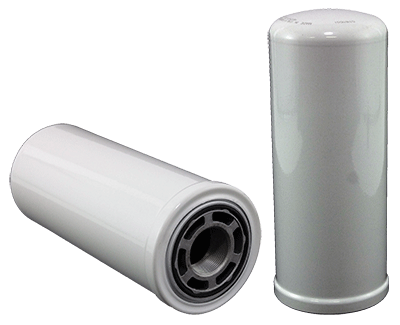

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
