Product Specifications

Part Number:W95A611
UPC Number:765809362680
Style:Cartridge Fuel Metal Canister Filter
Service:Fuel
Type:Full Flow
Media:Microglass
Height:57 (1448)*
Outer Diameter:6 (152)*
Inside Diameter Top:3.25 (83)*
Inside Diameter Bottom:0.5 (13)*
Nominal Micron Rating:1
Operating Temp. (max):225
Flow Direction:Inside-Out
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Coalescer Element
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W95A611

Error: Embedded data could not be displayed.

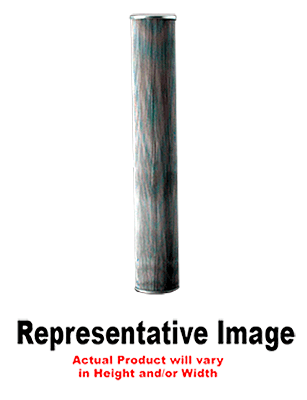

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
