Product Specifications

Part Number:F35C150B3
UPC Number:765809361492
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow/By-Pass
Media:Stainless Mesh
Height:9.75 (248)*
Outer Diameter Top:Closed:
Outer Diameter Bottom:2.969 (75)*
Thread Size:2 NPT / 3 NPT
By-Pass Valve Setting-PSI:3
Nominal Micron Rating:150
Operating Temp. (min):-15
Operating Temp. (max):225
Flow Direction:Inside-Out
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: F35C150B3

Error: Embedded data could not be displayed.

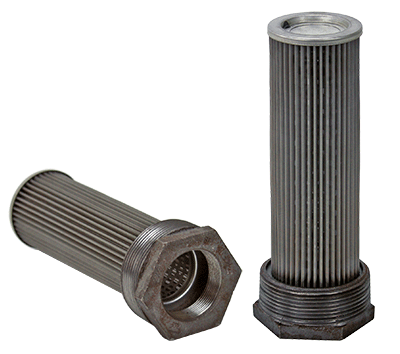

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
