Product Specifications

Part Number:P69C221
UPC Number:765809367098
Style:Air/Oil Separator Cartridge
Service:Air-Oil Separator
Type:Full Flow
Media:Microglass
Height:9.8 (249)*
Outer Diameter:3.5 (89)*
Inside Diameter Top:1.56 (40)*
Inside Diameter Bottom:1.06 (27)*
CFM:104
Operating Temp. (min):-35
Operating Temp. (max):300
Flow Direction:Inside-Out
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Compressors
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: P69C221

Error: Embedded data could not be displayed.

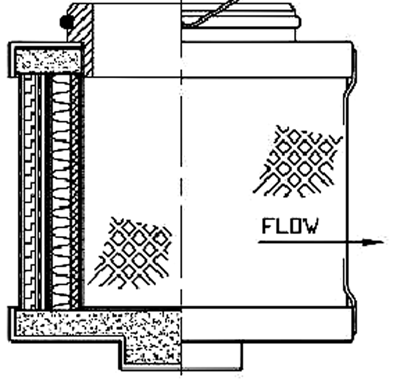

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
