Product Specifications

Part Number:W47B041
UPC Number:765809367081
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Water Absorbing
Height:18.44 (468)*
Outer Diameter:6 (152)*
Inside Diameter:2.25 (57)*
Max Flow Rate:25 GPM
Nominal Micron Rating:3
Operating Temp. (min):-35
Operating Temp. (max):250
Flow Direction:Outside-In
Capacity:1.75
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: W47B041

Error: Embedded data could not be displayed.

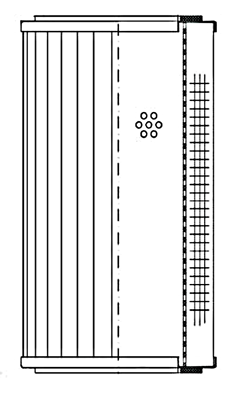

Representative Image
