Product Specifications

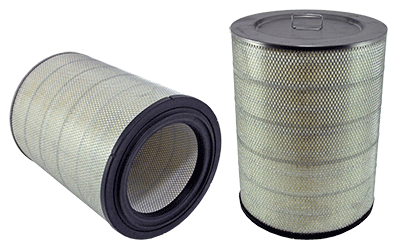

Part Number:WA10034
UPC Number:765809227439
Style:Radial Seal Outer Air
Service:Air
Type:
Media:Cellulose
Height:18.35 (466)*
Outer Diameter:14.125 (359)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:9.03 (229)*
CFM:1284
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Caterpillar Equipment - Has High Efficency Media (Outer used w/46747 inner) - Standard version is 46746
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: WA10034

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
