Product Specifications

Part Number:P85C300
UPC Number:765809367890
Style:Air/Oil Separator Cartridge
Service:Air-Oil Separator
Type:Full Flow
Media:Microglass
Height:12 (305)*
Outer Diameter Top:7.88 (200)*
Outer Diameter Bottom:6.75 (171)*
Inside Diameter Top:4.5 (114)*
Inside Diameter Bottom:Closed:
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Compressor Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: P85C300

Error: Embedded data could not be displayed.

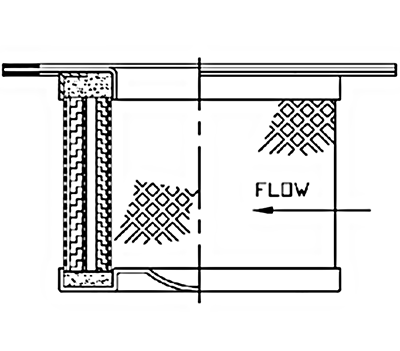

Representative Image
