Product Specifications

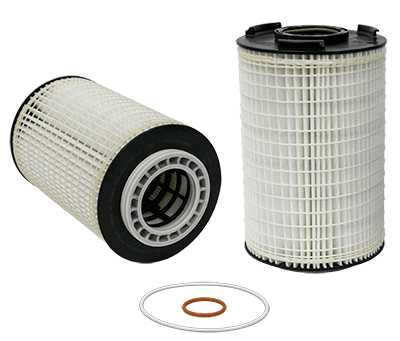

Part Number:WL10047
UPC Number:765809253346
Style:Cartridge Lube Metal Free Filter
Service:Lube
Type:Full Flow
Media:Synthetic
Height:7.65 (194)*
Outer Diameter:4.73 (120)*
Inside Diameter Top:2.058 (52)*
Inside Diameter Bottom:1.781 (45)*
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed 5.172 (131)*4.862 (123)*0.155 (4)*
Packed 1.557 (40)*1.277 (32)*0.14 (4)*

Principle Application:

Principle Application:IHC (Navistar), CAT Trucks
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: WL10047

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
