Product Specifications

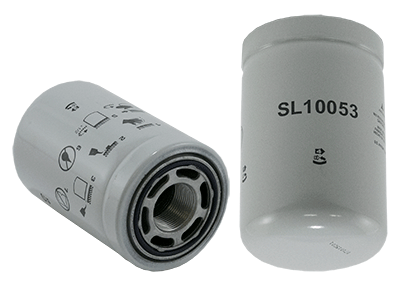

Part Number:WL10053
UPC Number:765809255258
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:6.104 (155)*
Outer Diameter Top:3.75 (95)*
Outer Diameter Bottom:Closed:
Thread Size:1 3/8-12
By-Pass Valve Setting-PSI:50 PSI
Beta Ratio:2/20/75=10/12/27
Burst Pressure-PSI:1000
Max Flow Rate:24-28 GPM
Nominal Micron Rating:10
Flow Direction:Outside-In
Filter Area:341
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.762 (70)*2.484 (63)*0.12 (3)*

Principle Application:

Principle Application:Bobcat Equipment
All Applications
