Product Specifications

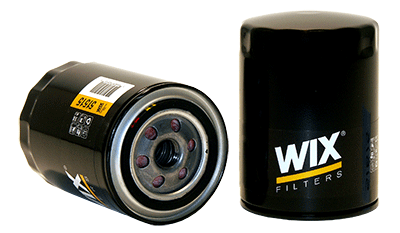

Part Number:51515
UPC Number:765809515154
Style:Spin-On Lube Filter
Service:Lube
Type:Full Flow
Media:Enhanced Cellulose
Height:5.197 (132)*
Outer Diameter Top:3.661 (93)*
Outer Diameter Bottom:Closed:
Thread Size:3/4-16
By-Pass Valve Setting-PSI:8-11
Anti-Drain Back Valve:Yes
Beta Ratio:2/20=6/20
Burst Pressure-PSI:290
Max Flow Rate:7-9 GPM
Nominal Micron Rating:21
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.834 (72)*2.462 (63)*0.200 (5)*

Principle Application:

Principle Application:Chrysler Family of Cars/Trucks (57-70), Ford Family of Cars/Trucks (57-00), Mazda Trucks (94-00), Toyota Landcruiser (71-96), various HD applications - (Two Quart version is 51773)
All Applications
