Product Specifications

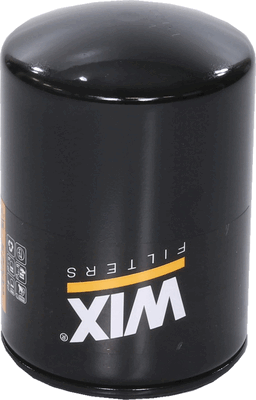

Part Number:57202
UPC Number:765809572027
Style:Spin-On Lube Filter
Service:Lube
Type:Full Flow
Media:Enhanced Cellulose
Height:5.216 (132)*
Outer Diameter Top:3.69 (94)*
Outer Diameter Bottom:Closed:
Thread Size:13/16-16
By-Pass Valve Setting-PSI:15 PSI
Anti-Drain Back Valve:Yes
Beta Ratio:2/20=6/20
Burst Pressure-PSI:335
Max Flow Rate:9-11 GPM
Nominal Micron Rating:21
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 3.550 (90)*3.160 (80)*0.180 (5)*

Principle Application:

Principle Application:Chev-GMC Vehicles w/ 6.6L Duramax Diesel (01-19)
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 57202

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
