Product Specifications

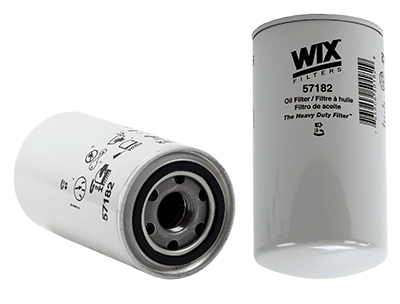

Part Number:57182
UPC Number:765809571822
Style:Spin-On Lube Filter
Service:Lube/Hydraulic
Type:Full Flow
Media:Enhanced Cellulose
Height:6.94 (176)*
Outer Diameter Top:3.67 (93)*
Outer Diameter Bottom:Closed:
Thread Size:1 1/8-16
Beta Ratio:2/75=10/30
Burst Pressure-PSI:300
Max Flow Rate:18 GPM
Nominal Micron Rating:10
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.829 (72)*2.459 (62)*0.235 (6)*

Principle Application:

Principle Application:Apache, Case, Cummins B Series Engines, Freightliner, Komatsu, Other
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 57182

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
