Product Specifications

Part Number:R67D60B
UPC Number:765809769069
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Stainless Mesh
Height:12.559 (319)*
Outer Diameter:5.079 (129)*
Inside Diameter Top:2.638 (67)*
Inside Diameter Bottom:2.791 (71)*
Thread Size:
Nominal Micron Rating:60
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Filter Area:796
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Hydraulic Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R67D60B

Error: Embedded data could not be displayed.

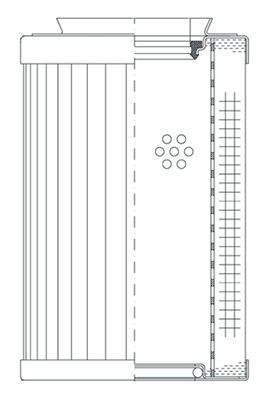

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
