Product Specifications

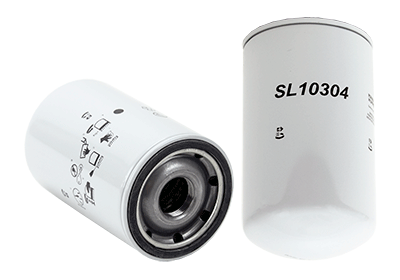

Part Number:WL10304
UPC Number:765809349483
Style:Spin-On Lube Filter
Service:Lube
Type:
Media:Cellulose
Height:8.075 (205)*
Outer Diameter Top:4.685 (119)*
Outer Diameter Bottom:Closed:
Thread Size:1 1/2-12
By-Pass Valve Setting-PSI:21 PSI
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 4.32 (110)*3.82 (97)*.32 (8)*

Principle Application:

Principle Application:John Deere, Hitachi Equipment
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: WL10304

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
