Product Specifications

Part Number:33604XE
UPC Number:765809536043

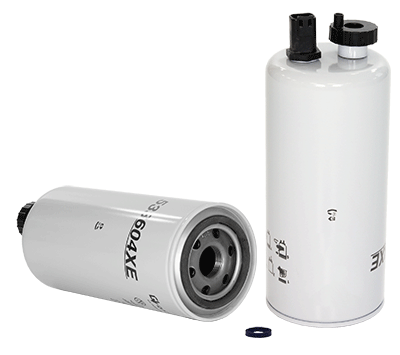

Style:Spin-On Fuel/Water Separator Filter
Service:Fuel
Type:Full Flow
Media:Enhanced Cellulose
Height:9.7 (246)*
Outer Diameter Top:3.7 (94)*
Outer Diameter Bottom:Closed:
Thread Size:1-14
Max Flow Rate:12-15 GPM
Nominal Micron Rating:5
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.820 (72)*2.475 (63)*0.230 (6)*

Principle Application:

Principle Application:Cummins Engines - Extra Efficiency Version of 33604 - has drain and sensor port
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 33604XE

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
