Product Specifications

Part Number:D36F12GA
UPC Number:765809983236
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:12.52 (318)*
Outer Diameter:2.87 (73)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:1.38 (35)*
Ends:Plastic
Beta Ratio:1000
Nominal Micron Rating:12
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Volvo Equipment - hyd return
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: D36F12GA

Error: Embedded data could not be displayed.

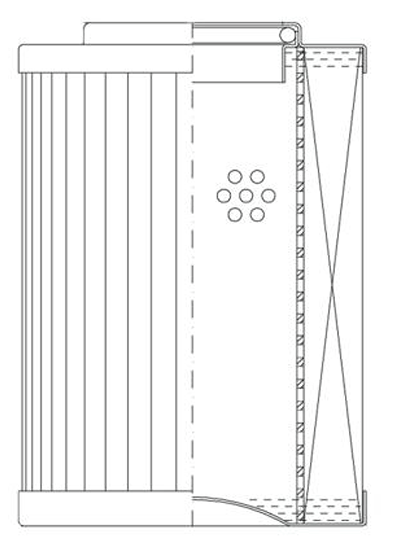

Representative Image
