Product Specifications

Part Number:	D40F450TV
UPC Number:	765809974401
Style:	Cartridge Hydraulic Metal Canister Filter
Service:	Hydraulic
Type:	Full Flow
Media:	Wire Mesh
Height:	4.56 (116)*
Outer Diameter:	3.07 (78)*
Inside Diameter Top:	1.7 (43)*
Inside Diameter Bottom:	Closed:
Nominal Micron Rating:	450
Operating Temp. (min):	-13
Operating Temp. (max):	248
Flow Direction:	Outside-In
Filter Area:	264

( )* denotes metric

Gasket Diameters

Number	O.D.	I.D.	Thk.
	0 ()*	0 ()*	0 ()*

Principle Application:

Various Industrial Applications

All Applications

Best viewed in Chrome, Firefox, IE9 and above

Part Number: D40F450TV

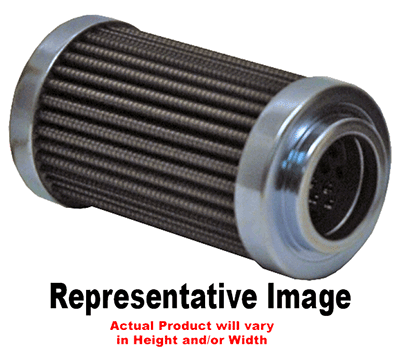

Representative Image

For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
