Product Specifications

Part Number:WF10537
UPC Number:765809976023

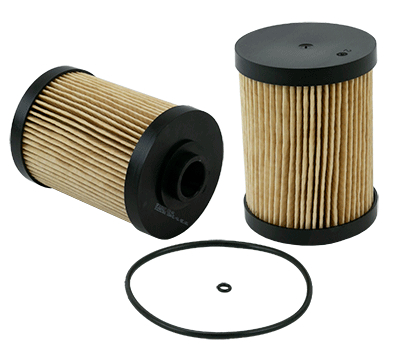

Style:Cartridge Fuel Metal Free Filter
Service:Fuel
Type:Full Flow
Media:Cellulose
Height:4.38 (111)*
Outer Diameter Top:3.01 (76)*
Outer Diameter Bottom:3 (76)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:0.8 (20)*
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed 0.337 (9)*0.187 (5)*0.075 (2)*
Packed 3.869 (98)*3.587 (91)*0.141 (4)*

Principle Application:

Principle Application:Multi-Quip Generator with Isuzu Engine - Secondary used with WF10109 Primary
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: WF10537

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
