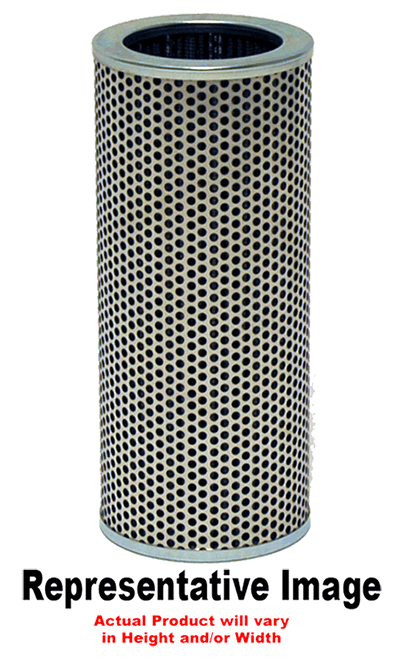

Product Specifications

Part Number:S693150T
UPC Number:765809947603
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Stainless Mesh
Height:5.382 (137)*
Outer Diameter:4 (102)*
Inside Diameter Top:4 (102)*
Inside Diameter Bottom:3 (76)*
Beta Ratio:2
Nominal Micron Rating:150
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Various Industrial Applications
