Product Specifications

Part Number:D8605CAV
UPC Number:765809923416
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:
Media:Cellulose
Height:17.69 (449)*
Outer Diameter:4.41 (112)*
Inside Diameter:2.76 (70)*
Beta Ratio:2
Nominal Micron Rating:5
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 0.0 ()*0.0 ()*0.0 ()*

Principle Application:

Principle Application:Kobelco Equipment
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: D8605CAV

Error: Embedded data could not be displayed.

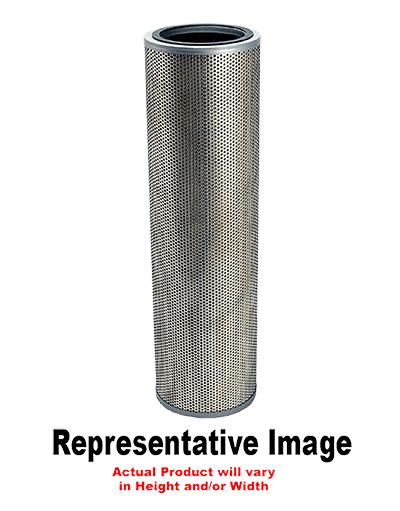

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
